Steel Framed Doors

Thanks to the highly robust nature of our steel and stainless steel doors, they are perfect for highly frequented buildings such as offices, lift and stair core doors, schools, hospitals, sports centres, shopping malls, railway stations, banks and hotels.

Our elegant and slimline doors are bespoke and made-to-measure, so can be configured to suit almost any application; integrating thermal breaks, fanlights, side screens and all are available in a wide range of finishes, ironmongery options, fittings and accessories to match.

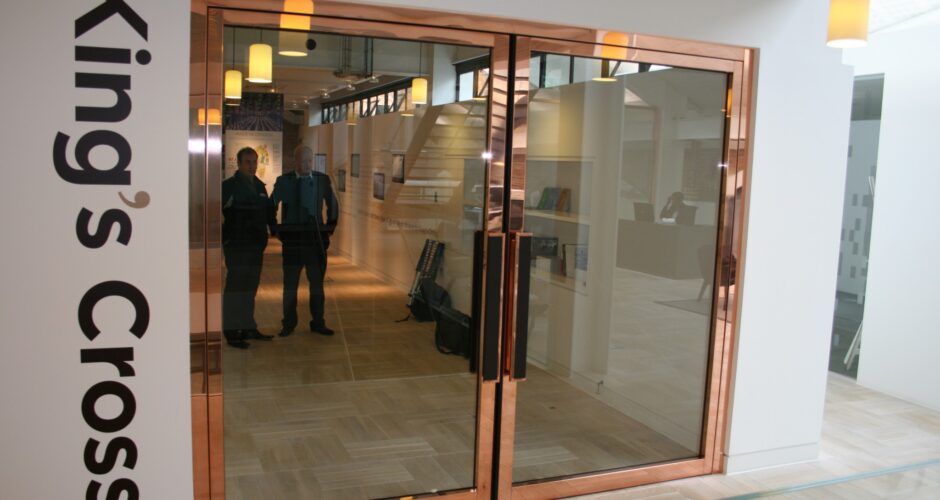

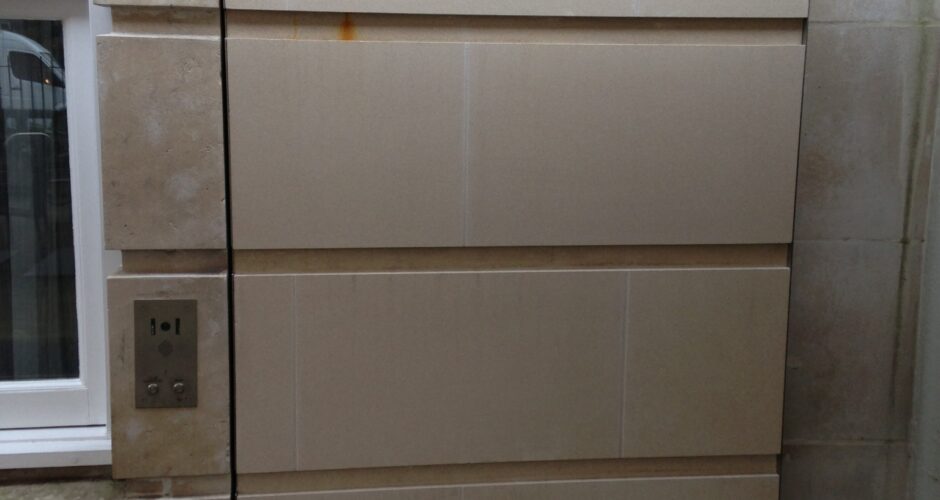

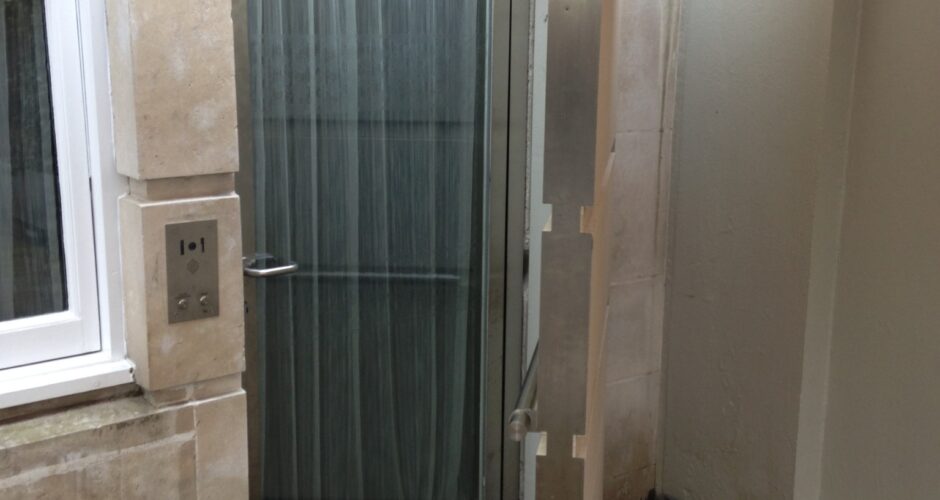

The doors can also be over clad in stainless steel, bronze and copper.

Technical Specification

The systems that we manufacture can be designed to accommodate a wide range of specifications as shown in the tables below.

Fire Protection	Up to 2 hour Integrity & Insulation (120/120). Integrity Only: 30/0 (E30), 60/0 (E60), 90/0 (E90), 120/0 (E120) Integrity & Insulation: 30/30 (EI30), 60/60 (EI60), 90/90 (EI90), 120/120 (EI120)
Acoustic	Up to 50dB – dependent upon system
Specialist Applications	Ballistic to: BR1 Bullet Proofing: FB 4 NS Burglar/Security: WK1/WK2/WK3 – EU equivalents to Secured by Design
Thermal Properties	1.0 w/m2k
Maximum H	Non Fire Rated CE Marked: 3000mm Bespoke Construction: 6000mm Fire Rated: 3000mm Maximum sizes vary upon fire test evidence.
Materials	Mild Steel & Stainless Steel
Surface Finishes	PPC – Polyester Powder Coating – Standard & Non Standard RAL Colours Specialist PPC finishes in Anodonic Colours (Bronze, Pewter, etc.) Colour matching available Stainless Steel Over clad – Brushed or Mirror Polished Copper & Bronze Over clad – Brushed, Mirror & Patinated
Glazing Depths	6mm to 52mm dependant on application.

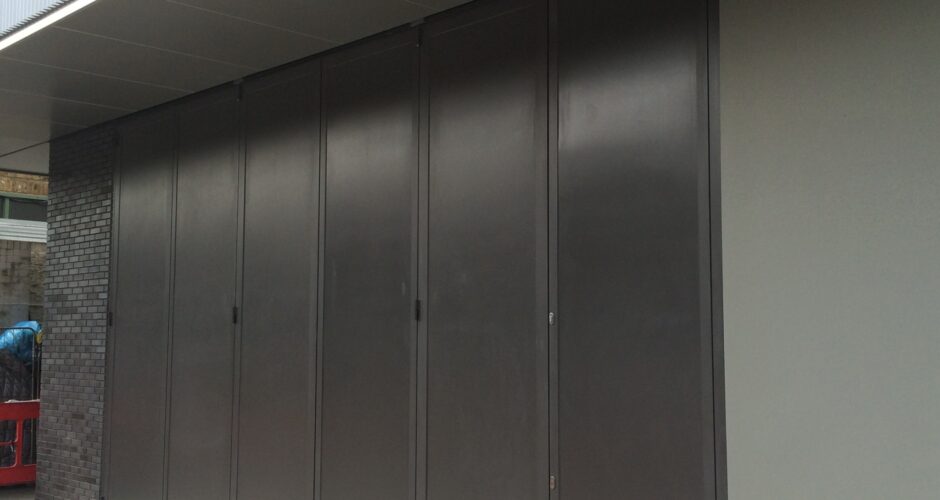

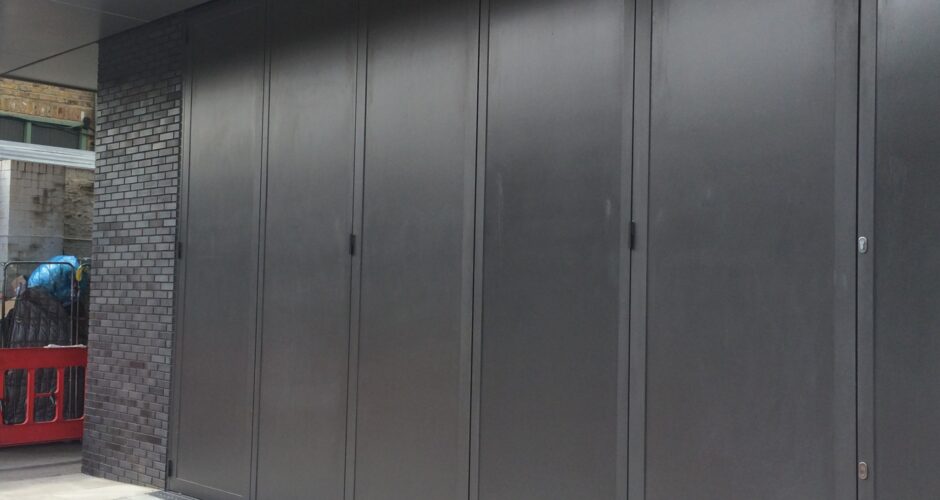

Construction Types	Internal & External Applications Single & Double Glazed Inward & Outward Opening Rebated Doors for Smoke Control Double Action Doors – Non Smoke Rated Doors Fully glazed or sheet metal clad door with/without vision panels Single and Double Leaf Doors Sheet Metal Panel Doors Bi-fold Fixed glazed Fan Light and or Side screens All door & screens are available with and without fixed side panels and/or skylights

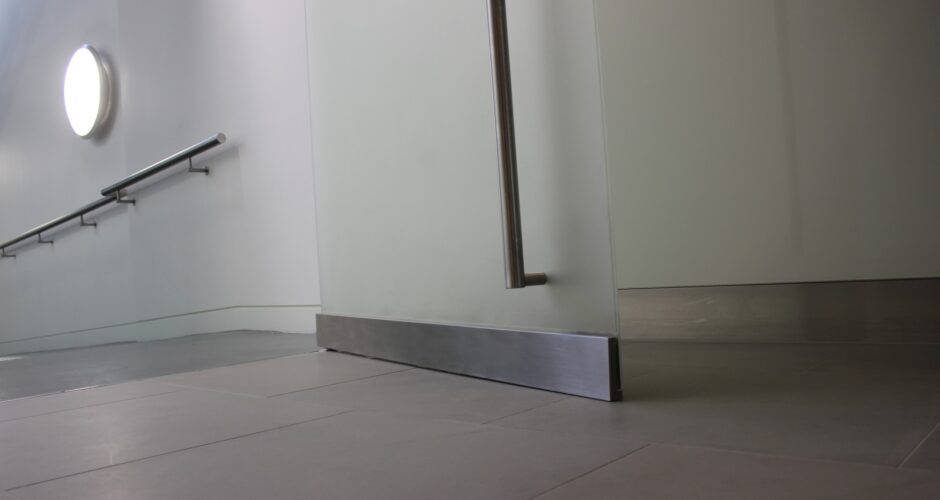

Access Equipment Ironmongery	Hinges: Welded or Screw-on. PPC, steel or stainless steel Door Closers: Concealed Closers & Surface Mounted Closers (Automatic and Manual), Floor Springs and Pivots. Locks: Single & Multipoint locks (motorised also available), Mortice Locks with or without top retracting bolts. Access Control – Mag Locks, Shear Locks, Electric Strikes, Actuators. Handles – Lever latched & Push/Pull handles Emergency Hardware: Emergency function B locks and panic push-bars/pads Automatic Swing Door Operators Automatic Drop seals
Spread Technical Features	Arched heads and bespoke geometrics available Connection to solid wall or lightweight wall construction Connections to curtain wall and glazed partitions all fully certified Installation depth from 50mm Butt jointed Glazing options (Vertical and Horizontal) with no overall width restrictions. Dry glazing and wet glazing Slim profile options – see typical profiles for more information – click here Anti-finger trap profiles Sliding door options available
Tests Certificates	Fire Rated in accordance with EN 1634-1 & EN 1634-3 Fire resistance class E30 through to EI 120 Emergency exit doors in accordance with EN 1125 / EN 179 Smoke protection in accordance with DIN 18095 Smoke control tested in accordance with EN 1634-3 CE marking in accordance with EN 13830 & EN 14351-1 Coefficient of thermal transmittance Uw > 1.3 W/m2K Thermal break in accordance with EN 14024 Airborne sound insulation to Rw 47 db Tightness against heavy rain class 4A Air permeability class 4 Resistance to wind load class C4/B4 Burglary protection WK (RC) 1-3 Bullet proofing FB4/NS
