Architect:
MJP Architects

Client:
Berry Bros & Rudd

Contractor:
Galliford Try

Scope & Products:

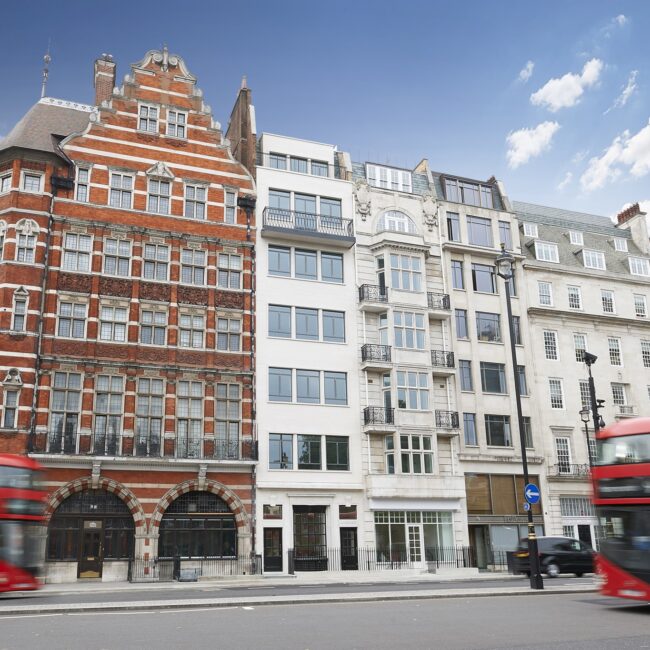

  • Heritage Thermally Broken Steel Windows (Front Elevation)

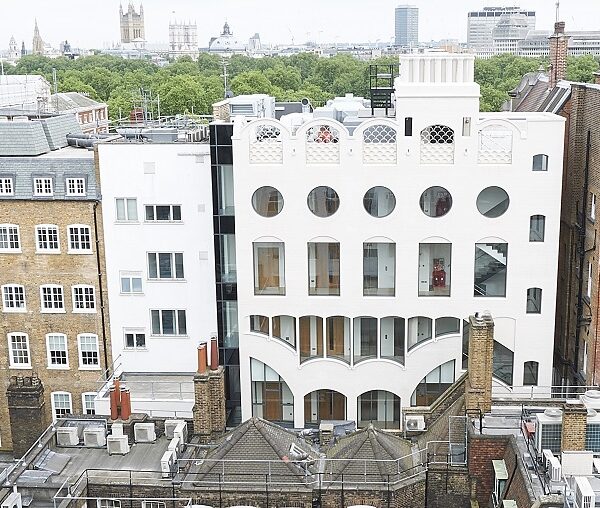

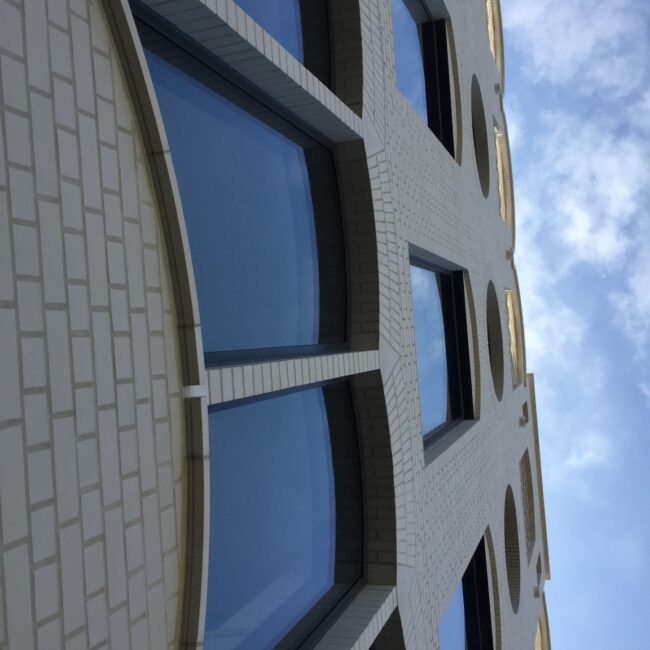

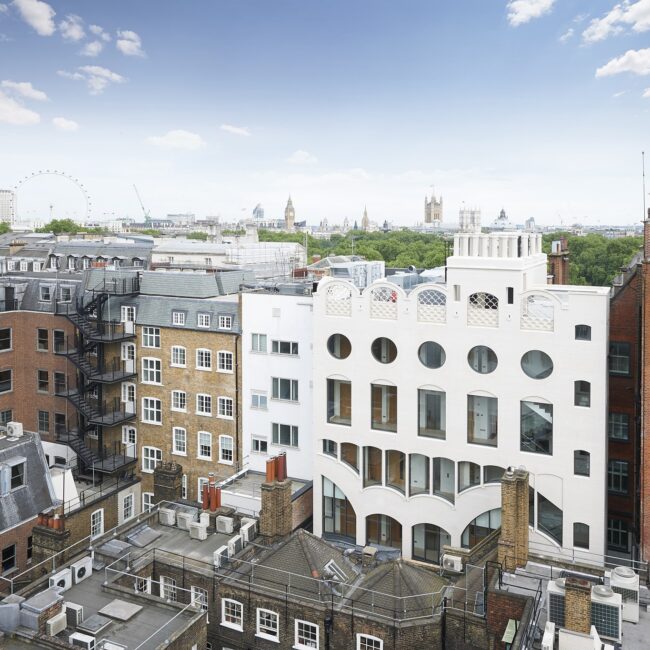

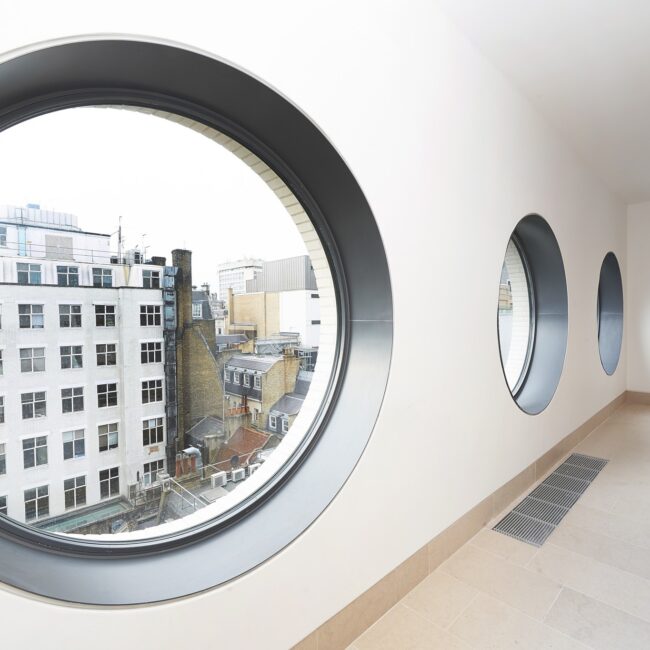

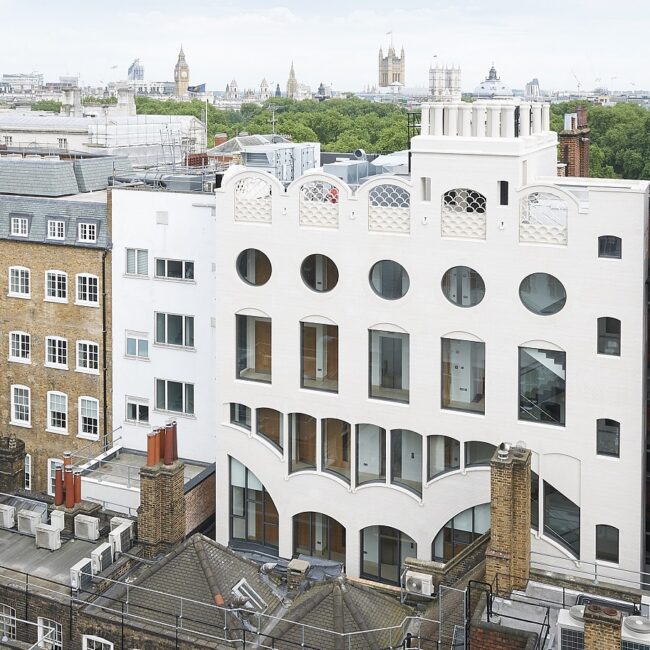

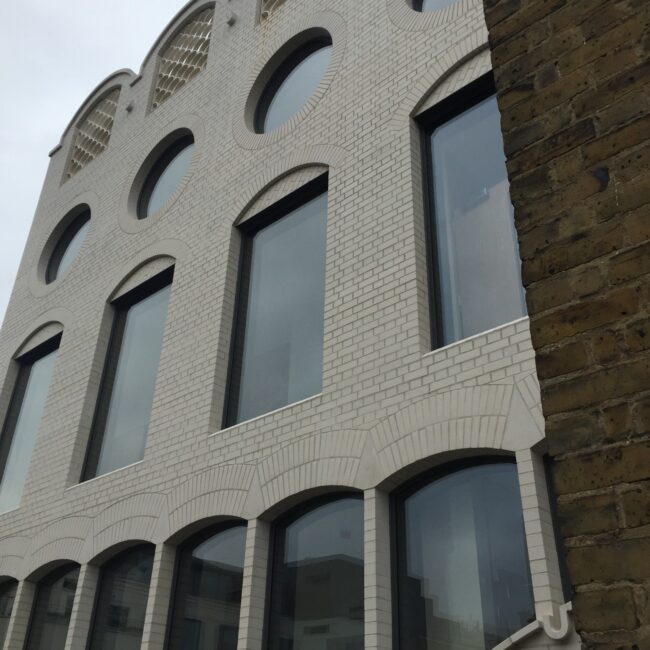

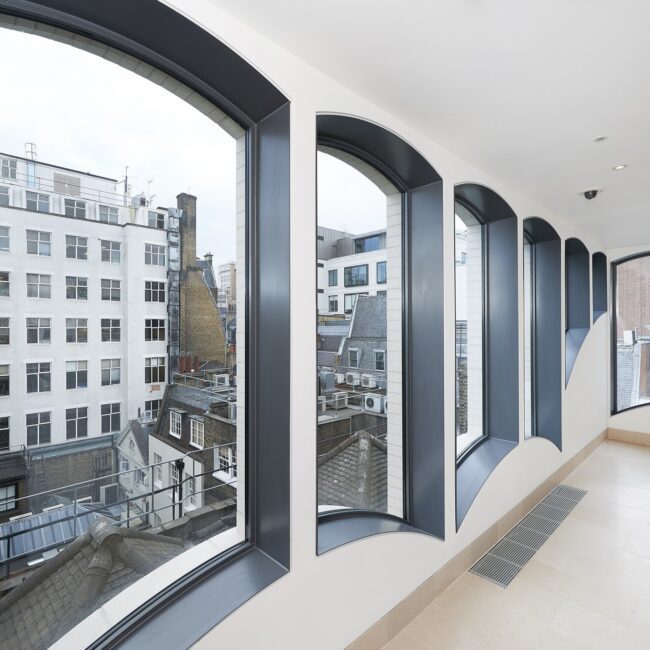

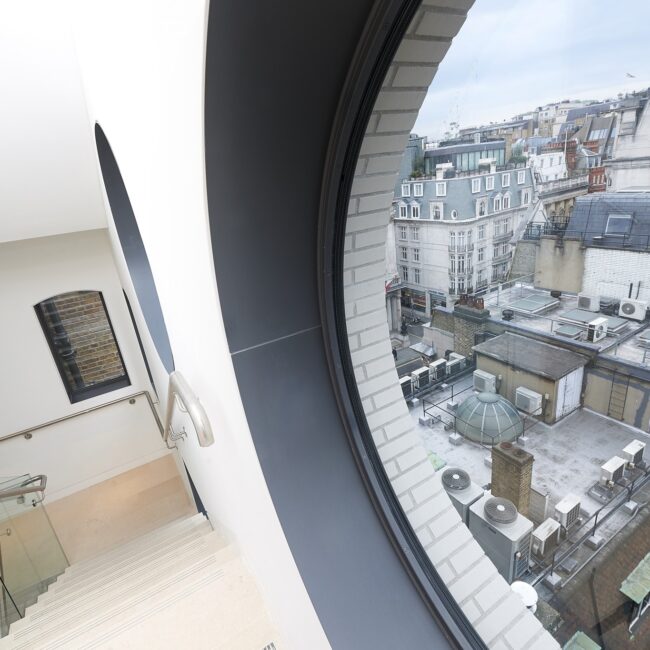

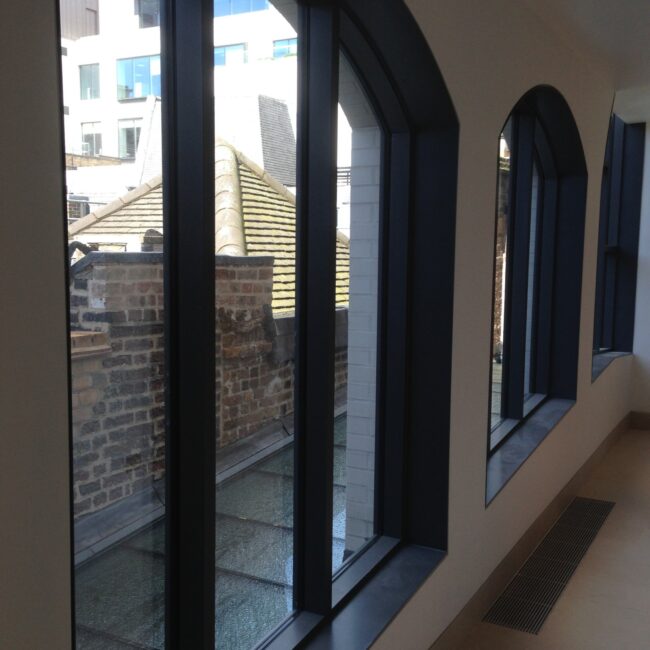

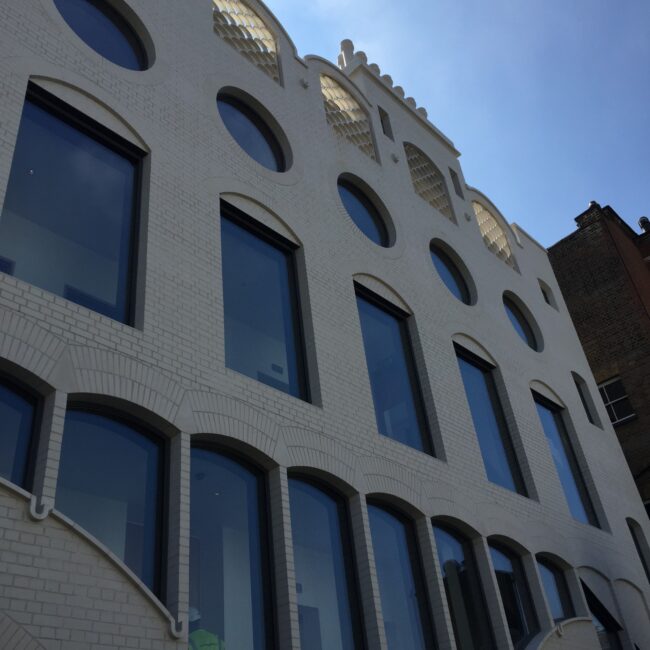

  • 40mm Thermally Broken Steel Circular and Arched Window’s
  • Curved and Arched Steel Curtain Wall

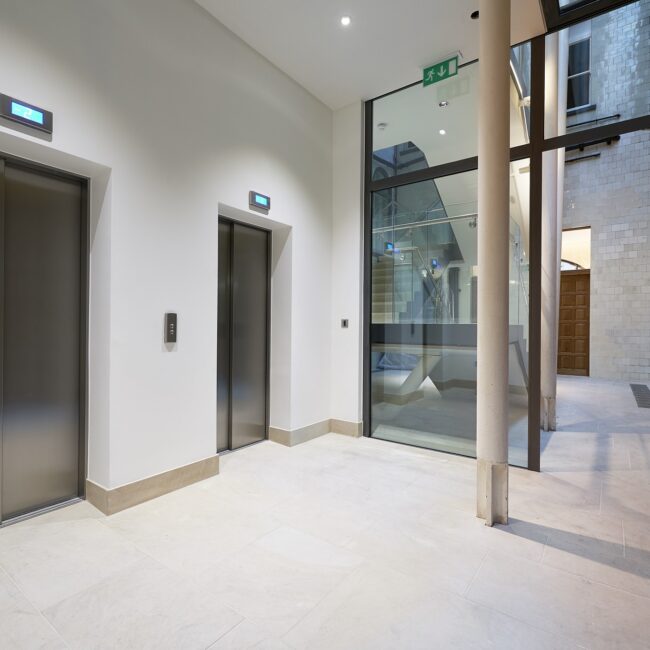

  • Fire Rated Glass Core Doors and Screens
  • 90:90 Fire Rated Steel Curtain Wall Over 6 Floors
  • 60:0 Butt Jointed Fire Rated Screens Over 2 Floor
  • 120:120 Fire Rated Glass Floor
  • 120:120 Fire Rated Light Well Glazing

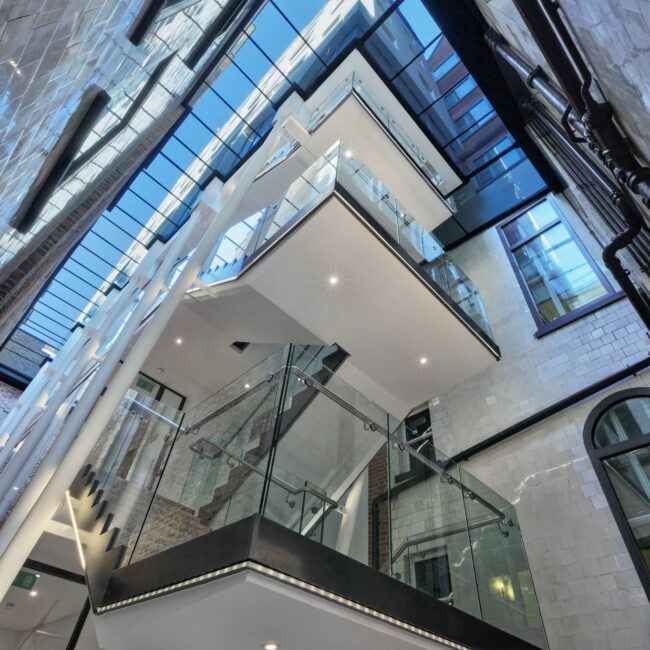

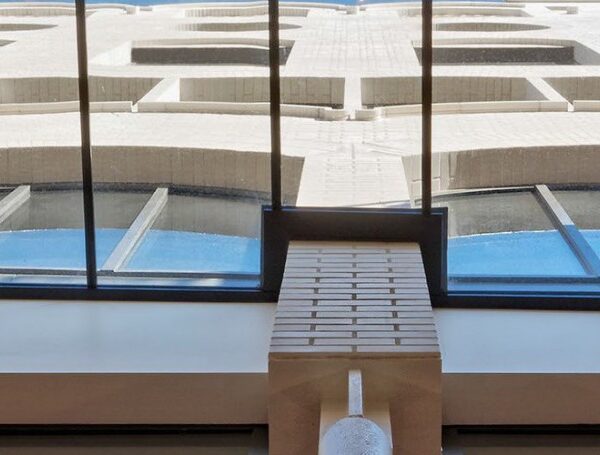

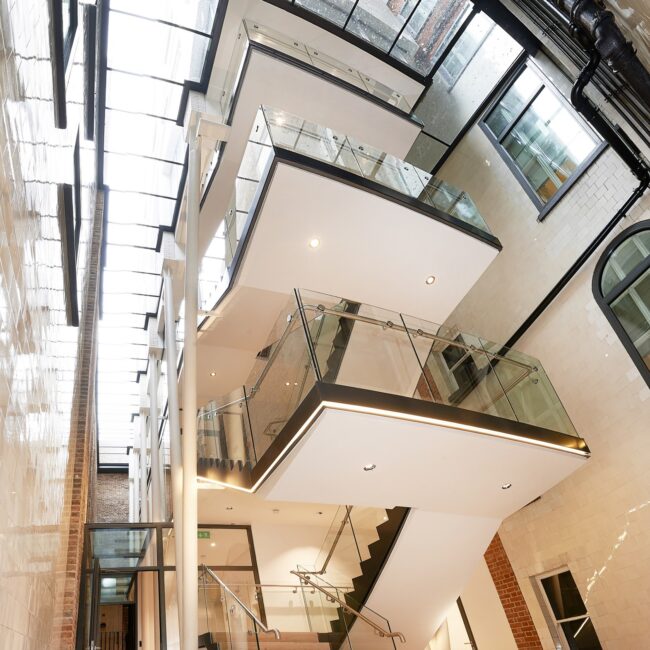

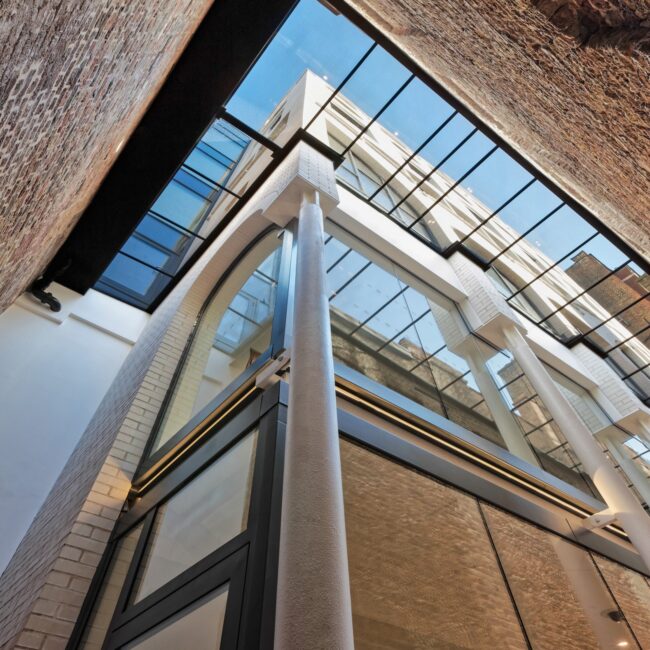

  • Structurally Glazed Glass Roof
  • Bespoke PPC Cill Flashings Integrated in to Circular and Curved Windows
  • Actuators and smoke vents
  • Fire Rated Steel Clad Panel Doors
  • Rain Screen Cladding to roof
  • Fire rated glass box

Challenges:

  • Complex geometrically shaped apertures
  • Very design intensive due to the numerous glazing elements and complex geometrical shapes
  • Limited storage and access as space was confined to working in what is essentially a courtyard space.
  • 400kg glass panes glazed by tower crane for 90:90 fire rated curtain wall

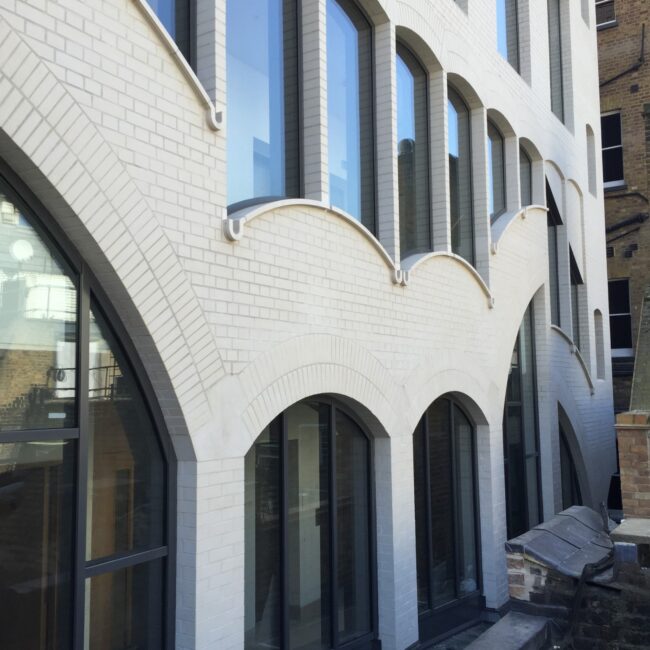

  • Coordinating brickwork arches by generating templates for the apertures were within tight tolerance.
  • Logistically challenging location, located on a tight and sensitive area of London on the corner of Pall Mall and St James Place, and opposite St James’s Palace.

Overview:

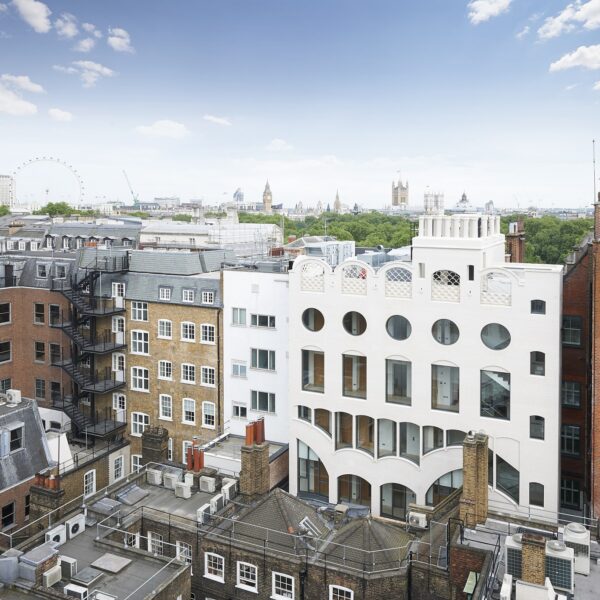

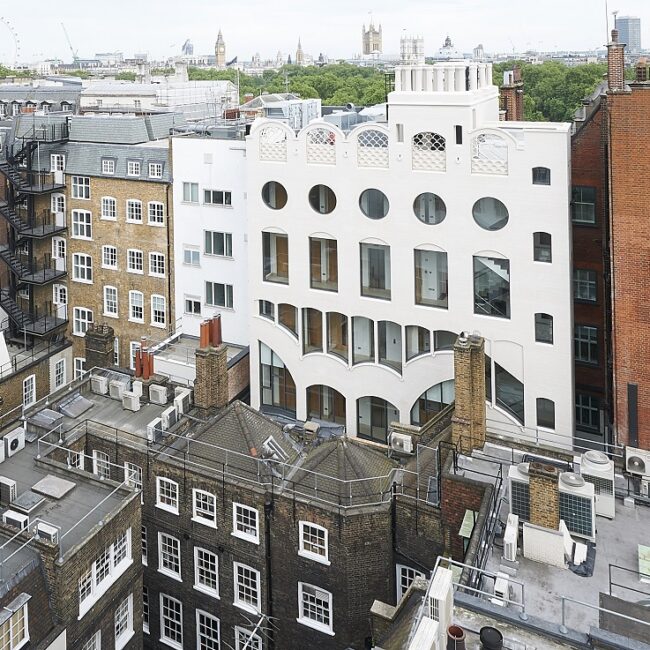

The project is located in the St James’s Conservation Area within the Westminster on a very tight and sensitive urban site at the corner of Pall Mall and St James.   It is surrounded on three sides by four Grade II* listed buildings so great care had to be taken during the construction process.

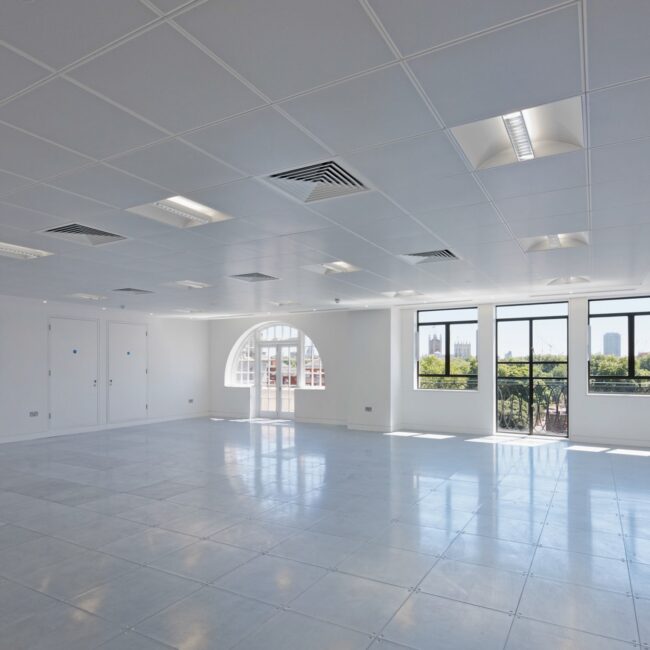

The building is effectively split into two distinct parts. At Ground floor and above the scheme provides approx. 9000sq. ft of lettable office floor space whilst below ground level the new and refurbished basements extend BB&R’s existing Hospitality and Wine School facilities.

Propak were appointed by Galliford Try originally to undertake the internal fire rated glazing installation however during the design process Galliford Try recognised the wider range of products that Propak have the ability to manufacture and added to the package all of the external facade and internal glazing to our package:

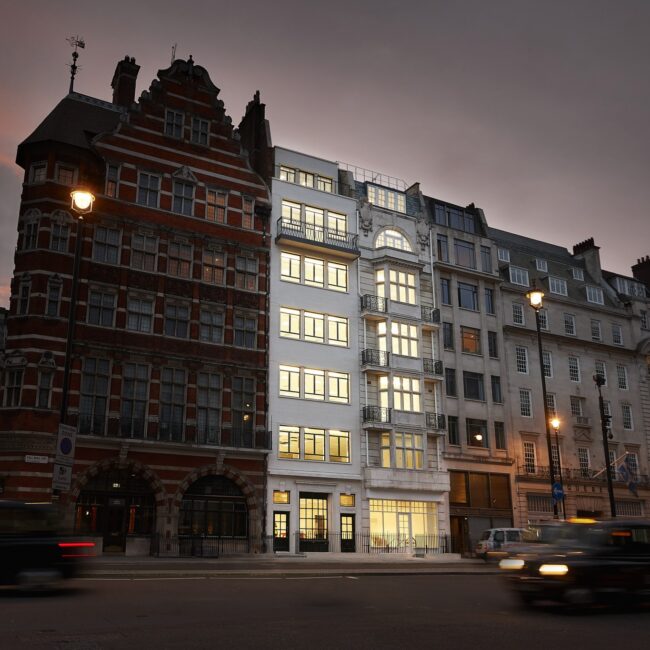

  • Heritage Thermally Broken Steel Windows (Front Elevation)

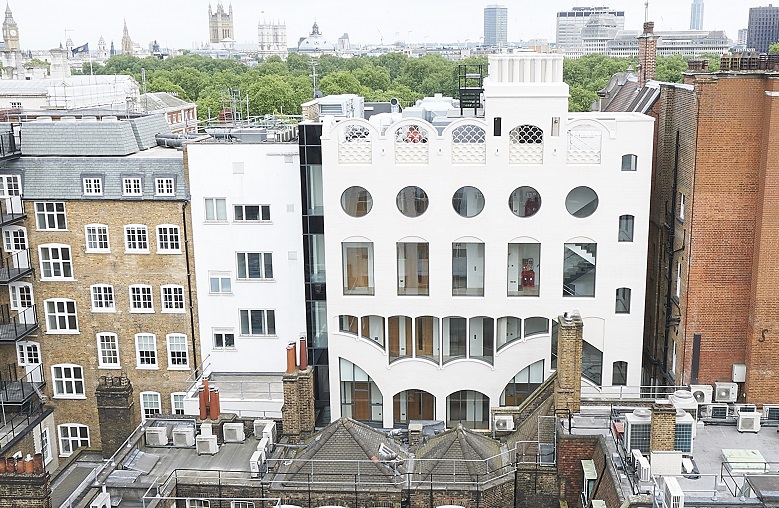

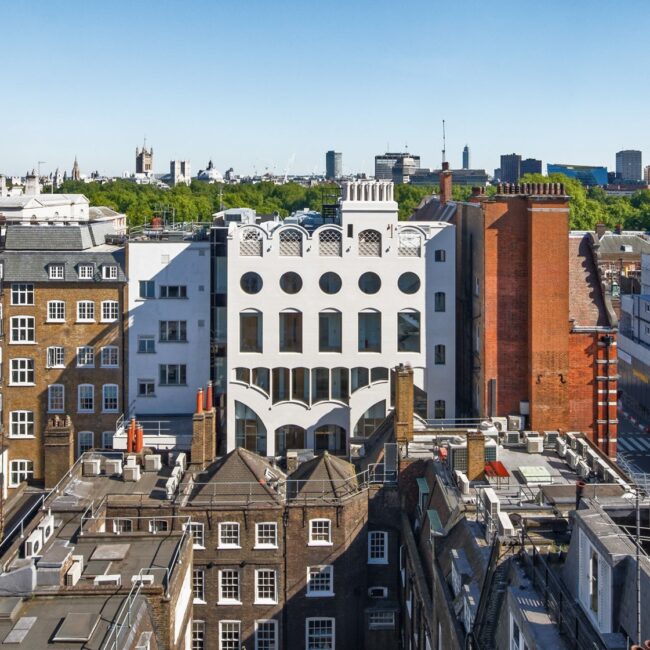

  • 40mm Thermally Broken Steel Circular and Arched Windows
  • Curved and Arched Steel Curtain Wall
  • Fire Rated Glass Core Doors and Screens

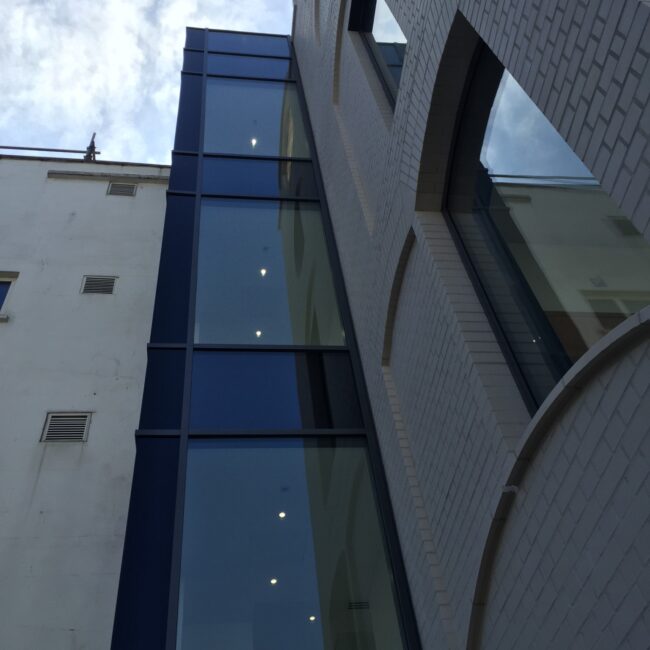

  • 90:90 Fire Rated Steel Curtain Wall Over 6 Floors
  • 60:0 Butt Jointed Fire Rated Screens Over 2 Floor
  • 120:120 Fire Rated Glass Floor
  • 120:120 Fire Rated Light Well Glazing
  • Structurally Glazed Glass Roof
  • Bespoke PPC Cill Flashings Integrated in to Circular and Curved Windows
  • Actuators and smoke vents
  • Fire Rated flush Steel Clad Panel Doors
  • Jansen Fire Rated Louvre
  • Rain Screen Cladding to roof and curtain wall
  • Fire rated glass box
